ASTA

Asta 350cm Square / 400cm Octagonal / 400 x 300cm Rectangular

SUNBRELLA ACRYLIC CANOPY, ANTHRACITE POWDER COATED FRAME – 60KPH WIND RATED
  • Sunbrella Acrylics

    Back In Stock From January

    Beacon Ash
    In Stock From April 22

    Canvas Coal
    Capri
    Capri
    Natural

Enquire about product

Beautifully crafted from marine grade raw materials, including drawn / extruded aluminium and aluminium castings, with stainless steel fasteners. The mast is a truly impressive 120 x 76mm section – that and all frame components are engineered to achieve a 60kph wind rating. The frame is powder coated a beautiful Silver Grey. Fabric is Sunbrella – the legendary 270gsm solution dyed acrylic that will almost never fade.

Other features include:

  • Infinite Tilt Positions – horizontal to 55°
  • 360° umbrella rotation; 12 position rotate lock – on insertable lock pin on lower mast
  • Detachable crank lever opening / closing
  • Retractable LED light bracket on hub
  • Protective Waterproof Cover

INSTALLATION

On Concrete “bolt down”.

The 25cm round base flange (bottom of the umbrella mast) is supplied
with the umbrella. It has 4 countersunk securing holes into which 10mm
diameter x 100mm long DYNABOLTS, LOCKSINS or CONCRETE SCREWS
(to be purchased) can be secured in pre-drilled holes in the concrete.

Inground Base recommended – (Optional purchase),
for cementing into the ground – length 50cm.

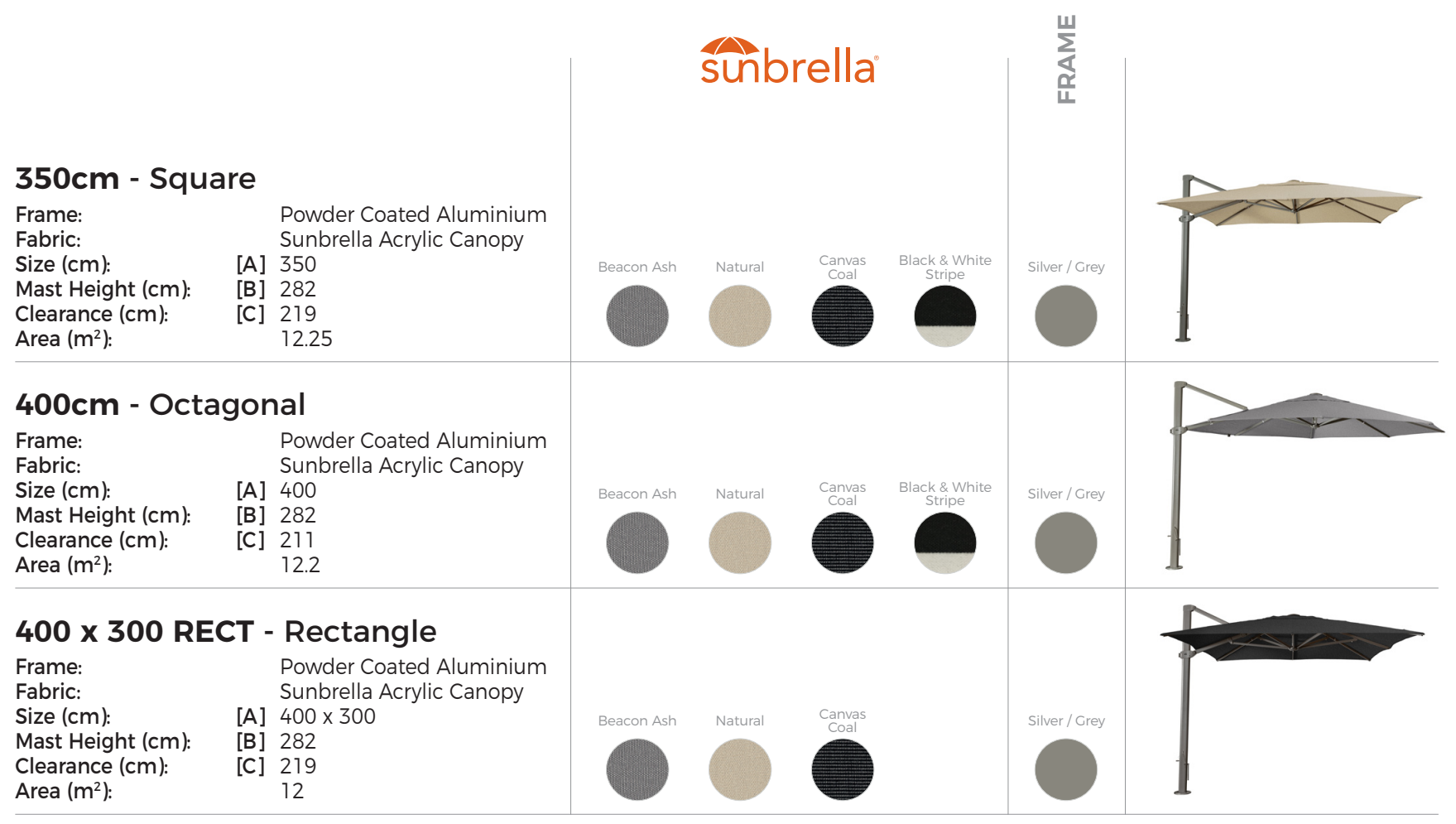

Specifications

ASTA 350 SQU 400 OCT 4×3 RECT
Shape
Dimensions (cm) 350 400 400×300
Mast Height 282 282 282
Clearance 219 211 219
Area (M2) 12.25 12.2m2 12m2
Mast Oval 120 x 76mm Oval 120 x 76mm Oval 120 x 76mm
Opening Winder system Winder system Winder system
Tilt Variable to 55 ̊ Variable to 55 ̊ Variable to 55 ̊
