Description
This On ground plate is used for bolting the rotate bearing to a reinforced concrete slab for a permanent position.

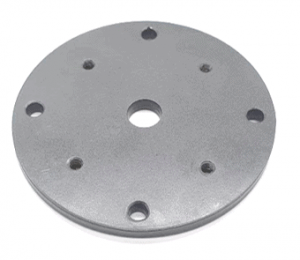

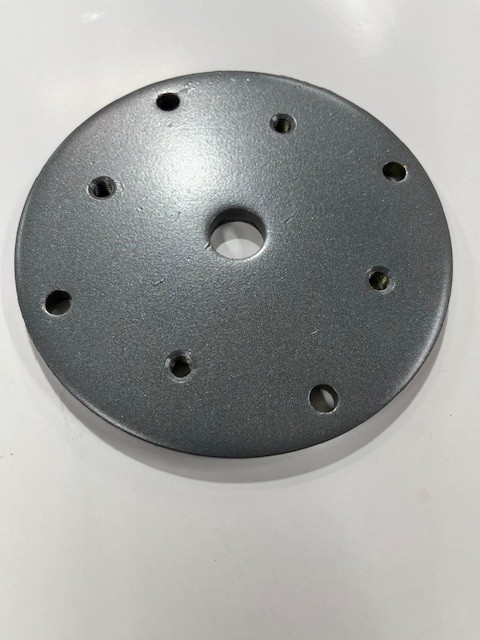

The SMALL plate – Round 160 x 160 x 10mm – will fit the small rotate bearing only.
SMALL – Suits the following models only – AG5A, AG45

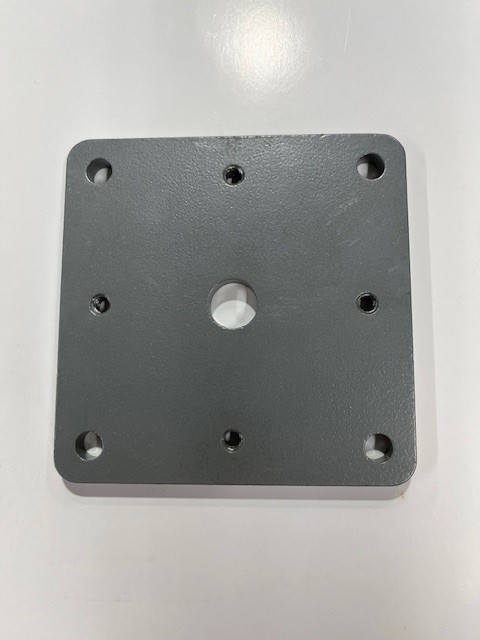

The MEDIUM plate – Square 140 x 140 x 10mm – will fit the small and Medium rotate bearing only.
MEDIUM – Suits the following models only – AG5A, AG5CA, AG5CD, AG15A, AG15A(II), AG45, AGM5C, AD45(II)
The LARGE plate – Square 180 x 180 x 10mm – will fit the large rotate bearing only.
LARGE – Suits the following models only – AG5C, AG5CB, AG25, AG25R, AG25AB, AG35, AG55, AD45, AKZ,

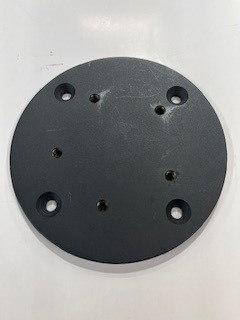

The XL Plate – Round 215 x 215 x 10mm – will fit the 5 hole rotation device only.
XL – Suits the following models only – AG60, AKZP
The UNIVERSAL Plate is 304 STAINLESS STEEL. It is recommended for coastal areas or close proximity to pools as it will not rust like steel does. – Square 180 x 180 x 10mm – will fit Small, Medium, Large and XL rotate bearing/device.
UNIVERSAL – Suits the following models only – AD45, AD45(II), AGM5C, AG5A, AG5C, AG5CA, AG5CB, AG5CD, AG15A, AG15A(II), AG25, AG25R, AG25AB, AG35, AG45, AG55, AG60, AKZ, AKZP
If you are not sure what model you have , please click on the following link to identify it.
Identify My Cantilever Umbrella (shelta.com.au)
For installation instructions please refer to the instruction manual that came with your shade umbrella or download a copy here.
