Lynden Cantilever Umbrella

Lynden 280 square

Lynden is Shelta’s smaller square cantilever, it features a smaller version of the oval section Savannah mast. It also shares other Shelta cantilever features – 360° rotate (with foot lock), multi “pistol grip” tilt lock and winder opening/closing.

LYNDEN Cantilever

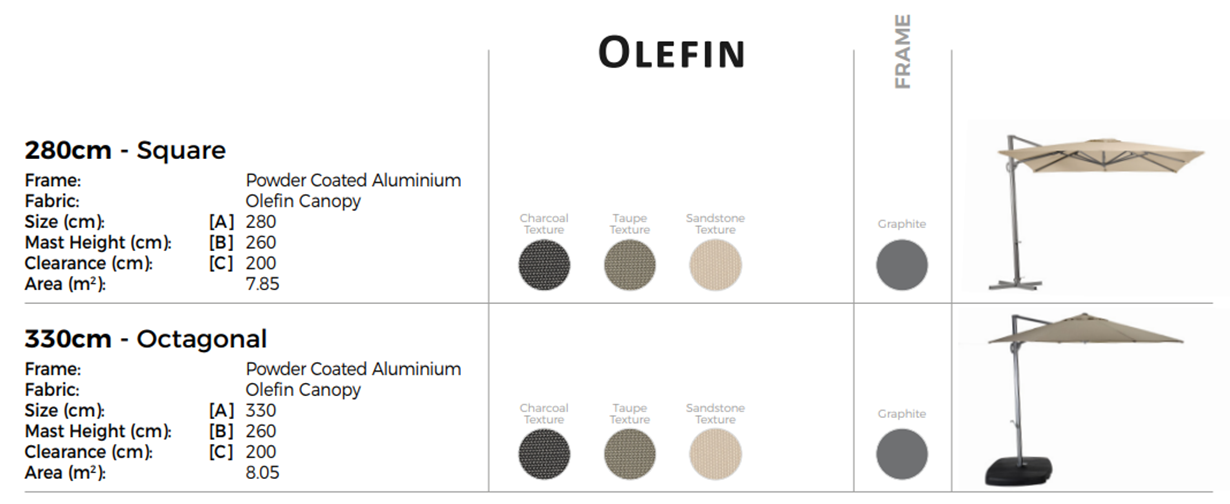

Specifications

Lynden 280
Shape icon-shape-oct
Area (square metre) 7.85m2
Mast Oval 75 x 50mm
Frame Graphite Powdercoated
Opening Winder System
Tilt Variable to 25º
Open Diameter 280cm
Mast Height 260cm
Under Edge Clearance  207cm* / 200cm
*With Ballast Frame

Colours

Olefins

  • Swatch - Black Black
  • Swatch - Charcoal Charcoal
  • Swatch - Sandstone Sandstone
  • Swatch - Taupe Taupe
  • Swatch - Toffee Toffee

Installation

Can be mounted using any one of the following options:

On Ground Base Plate or Ballast Block Frame – (both included)  Six ballast blocks needed, recommended total weight 110kg.

Ballast Weights – optional purchase. Either Resinstone (16kg) or Concrete (25kg).
Concrete Ballast Weight (25kg)
Small 4pc Resin Base – optional purchase. for fitting over ballast block frame, 101 x 101cm, H 12cm, water ballast 75kg.
Ballast Block Frame
